| उत्पत्ति के प्लेस: | शेनझेन, चीन |
|---|---|
| ब्रांड नाम: | TeXin |
| प्रमाणन: | CE ISO |
| मॉडल संख्या: | TX-10W |
| न्यूनतम आदेश मात्रा: | 2 |
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | टिकाऊ मामला |
| प्रसव के समय: | 5-8 दिन |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | 1000/महीना |
| नाम: | शक्ति एम्पलीफायर | आवृत्ति: | 50-7200MHz (अनुकूलित) |
|---|---|---|---|
| परीक्षण वोल्टेज: | 28-32V | मौजूदा: | 1 क |
| उत्पादन: | 10W | पाना: | 43डीबीएम |
| योजक: | एसएमए/महिला | आउटपुट कनेक्टर VSWR: | ≤1.30 (बिना पावर और वीएनए परीक्षण) |
| विद्युत आपूर्ति तार: | लाल+काला+सक्षम वायर | बाहरी खोल का आकार: | 105*60*20 |
| वज़न: | 278g |

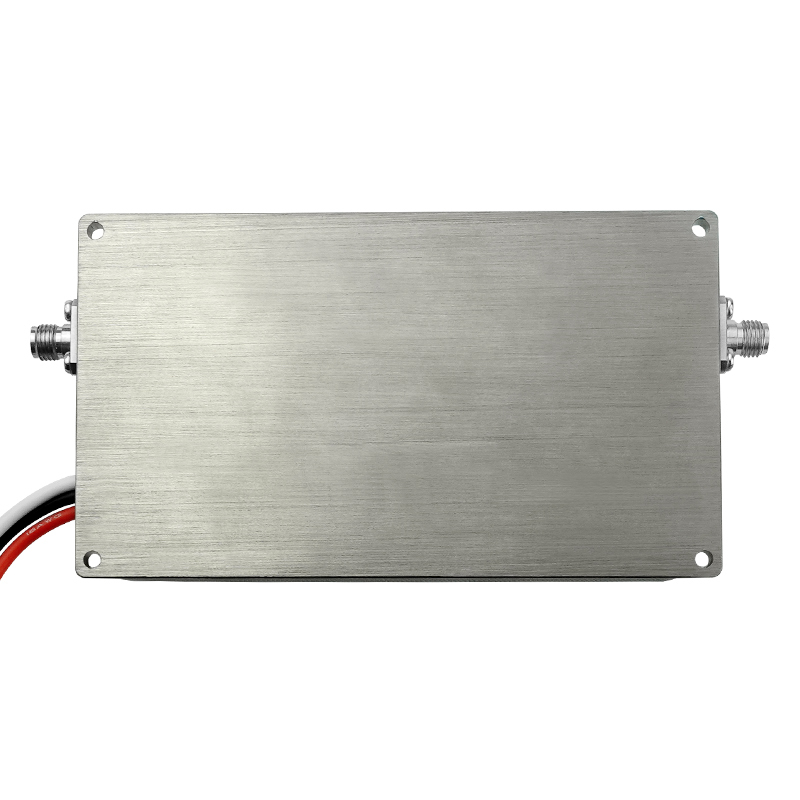

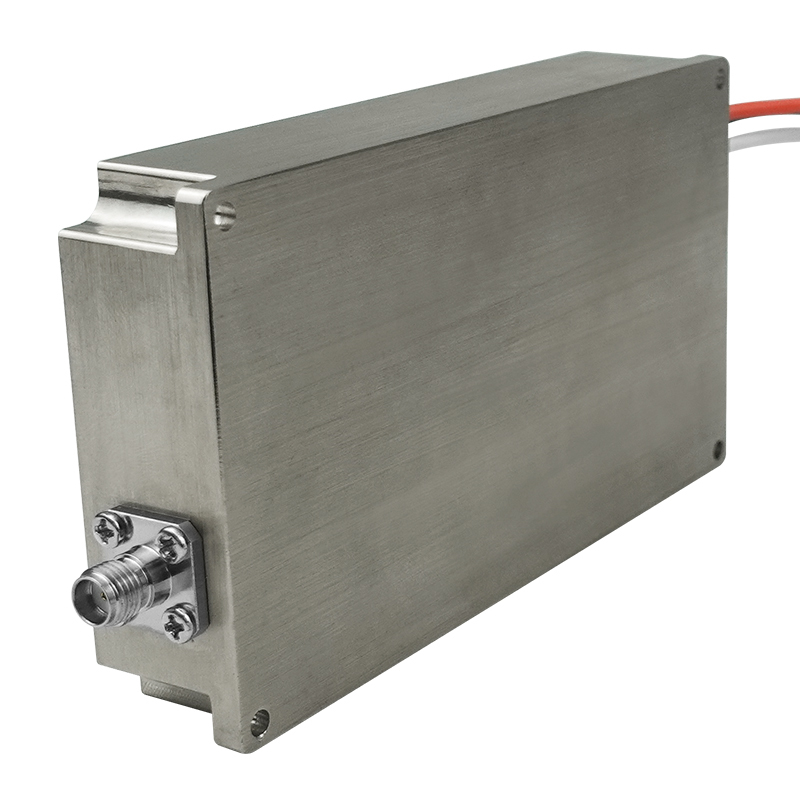

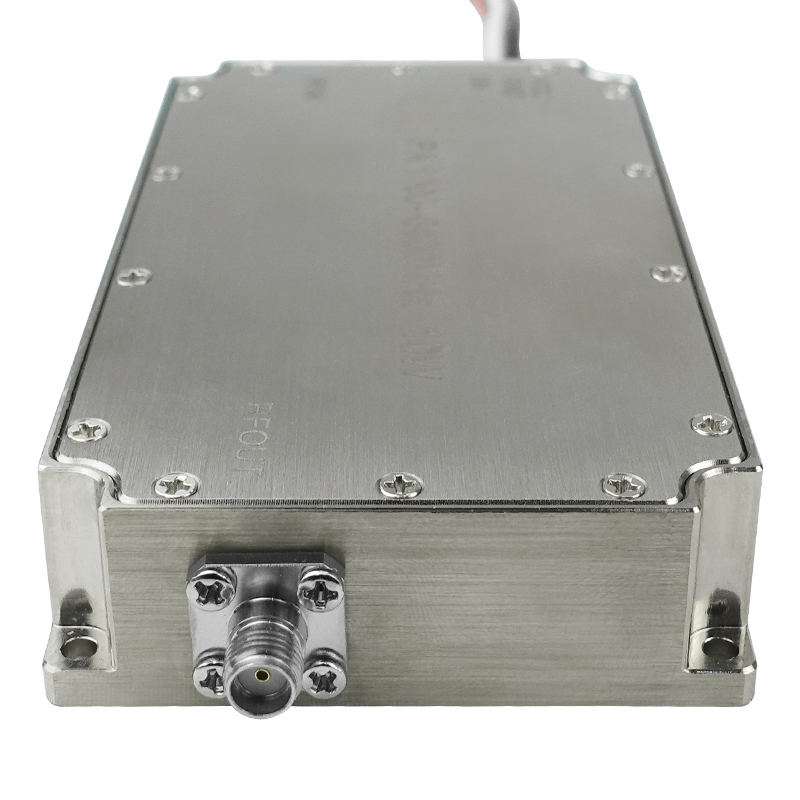

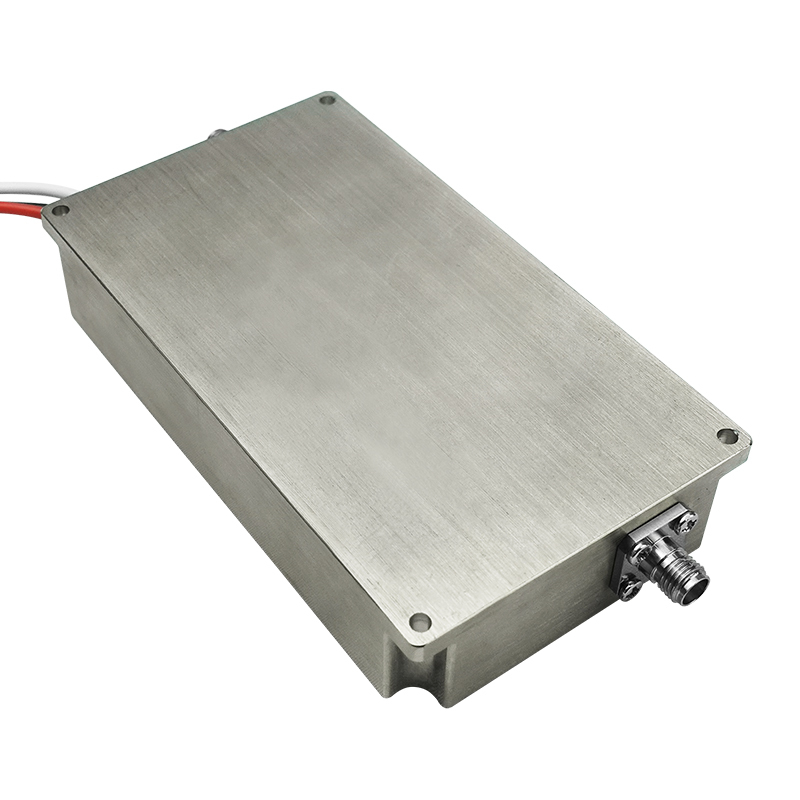

10W 50-7200MHz power amplifer module no signal source build in However, the module has been specially processed to directly cover the frequency band of 50-7000MHz. Customers can interfere with drones of corresponding frequency bands by connecting their own signal sources to achieve the purpose of protecting personal safety.
The module can be used in prisons, schools, governments, outdoor venues, concerts and other important places.
| Description | Symbol | Min | Typ | Max | Unit | Remark | |
| Operating Frequency | BW | 1.0 | 6.4 | GHz | |||
| Input Power | Pin | 0 | dBm | ||||
| Output Power CW | Psat | 40 | dBm | Continuous Wave | |||
| Power Gain | Gp | 40 | 45 | dBm | @ Pin=0 dBm | ||
| Small Singal Gain Flatness | △G | ±2.0 | @ Pin=-30 dBm | ||||
| Power Gain Flatness | △Gp | ±1.0 | dB | @ Pin=0 dBm | |||
| Spurious Suppression | Spur | -60 | dBc | ||||
| Input Return Loss | S11 | -15 | dB | ||||
| Operating Voltage | Vdc | 28 | 28 | 36 | V | ||
| Current Consumption | A | 4 | A | @ Psat | |||
| Switching Time | TON/TOFF | 2 | 5 | us | @ 1kHz TTL, Pin=0 dBm | ||
| RF Connector Input | SMA, Female | ||||||
| RF Connector Output | SMA, Female | ||||||
| Weight | 0.3 | Kg | |||||
| Length*Width*Height | 105×60×20 | mm | |||||
| Max Input Power | PinMax | ≤10 | dBm | ||||
|
(Line) |
VDD | Red Line | 28Vdc | ||||
| GND | Blake Line | Ground | |||||
| SW | White Line | Amplifier Enable(Range :+3.3V to VDD) | |||||
| 24V | 30V | 36V | ||||||||
| Freq(MHz) | input(dBm) | Pout(dBm) | I(A) | η(%) | Pout(dBm) | I(A) | η(%) | Pout(dBm) | I(A) | η(%) |
| 500 | 0 | 39.8 | 1.37 | 29.04% | 41.39 | 1.58 | 29.06% | 42.6 | 1.74 | 34.86% |
| 600 | 0 | 40.9 | 1.3 | 39.43% | 42.65 | 1.52 | 40.37% | 43.95 | 1.78 | 46.50% |
| 700 | 0 | 40.99 | 1.33 | 39.35% | 42.89 | 1.55 | 41.84% | 44.1 | 1.85 | 46.31% |
| 800 | 0 | 41.3 | 1.4 | 40.15% | 43.23 | 1.62 | 43.29% | 44.7 | 1.79 | 54.96% |
| 900 | 0 | 41.4 | 1.5 | 38.34% | 43.35 | 1.71 | 42.16% | 44.85 | 1.91 | 53.31% |
| 1000 | 0 | 41.4 | 1.52 | 37.84% | 43.38 | 1.74 | 41.72% | 44.87 | 1.94 | 52.73% |
| 1100 | 0 | 41.8 | 1.62 | 38.93% | 43.67 | 1.84 | 42.18% | 45 | 2.02 | 52.18% |
| 1200 | 0 | 41.88 | 171 | 0.38% | 43.6 | 1.92 | 39.77% | 44.75 | 2.07 | 48.07% |
| 1300 | 0 | 41.8 | 1.75 | 36.04% | 43.52 | 1.98 | 37.86% | 44.66 | 2.136 | 45.63% |
| 1400 | 0 | 41.76 | 1.69 | 36.97% | 43.43 | 1.9 | 38.65% | 44.63 | 2.059 | 47.01% |
| 1500 | 0 | 41.65 | 1.66 | 36.70% | 43.23 | 1.85 | 37.91% | 44.31 | 1.97 | 45.65% |
| 1600 | 0 | 42 | 1.71 | 38.62% | 43.61 | 1.92 | 39.86% | 44.6 | 2.038 | 47.17% |
| 1700 | 0 | 41.88 | 1.73 | 37.13% | 43.45 | 1.95 | 37.83% | 44.4 | 2.06 | 44.57% |
| 1800 | 0 | 41.75 | 1.73 | 36.04% | 43.34 | 1.98 | 36.33% | 44.33 | 2.1 | 43.02% |
| 1900 | 0 | 42 | 1.74 | 37.95% | 43.57 | 1.95 | 38.89% | 44.6 | 2.1 | 45.78% |
| 2000 | 0 | 42.3 | 1.81 | 39.09% | 43.96 | 2.06 | 40.27% | 44.89 | 2.26 | 45.47% |
| 2100 | 0 | 42.4 | 1.83 | 39.57% | 44 | 2.11 | 39.68% | 44.93 | 2.33 | 44.52% |
| 2200 | 0 | 42.3 | 1.78 | 39.75% | 43.84 | 2 | 40.35% | 44.82 | 2.24 | 45.15% |
| 2300 | 0 | 42.4 | 1.88 | 38.52% | 43.96 | 2.02 | 41.07% | 44.88 | 2.22 | 46.19% |
| 2400 | 0 | 42.4 | 2 | 36.20% | 44 | 2.16 | 38.76% | 44.69 | 2.39 | 41.07% |
| 2500 | 0 | 42.4 | 2.12 | 34.15% | 43.9 | 2.38 | 34.38% | 44.56 | 2.7 | 35.28% |
| 2600 | 0 | 42.2 | 2.15 | 32.16% | 43.6 | 2.39 | 31.95% | 44.1 | 3 | 28.56% |
| 2700 | 0 | 42.3 | 2.15 | 32.91% | 43.94 | 2.72 | 30.36% | 44.7 | 3.16 | 31.13% |
| 2800 | 0 | 42.2 | 2.04 | 33.90% | 43.96 | 2.55 | 32.53% | 44.83 | 2.96 | 34.24% |
| 2900 | 0 | 41.9 | 1.99 | 32.43% | 43.71 | 2.39 | 32.77% | 44.68 | 2.7 | 36.27% |
| 3000 | 0 | 42.2 | 1.94 | 35.64% | 43.97 | 2.25 | 36.96% | 45.11 | 2.46 | 43.95% |
| 3100 | 0 | 41.85 | 1.97 | 32.38% | 43.66 | 2.17 | 35.68% | 44.68 | 2.29 | 42.76% |
| 3200 | 0 | 41.95 | 2 | 32.64% | 43.7 | 2.3 | 33.97% | 44.81 | 2.24 | 45.04% |
| 3300 | 0 | 41.88 | 2.15 | 29.88% | 43.58 | 2.38 | 31.94% | 44.66 | 2.2 | 44.31% |
| 3400 | 0 | 41.74 | 2.18 | 28.53% | 43.54 | 2.42 | 31.12% | 44.64 | 2.3 | 42.18% |
| 3500 | 0 | 41.42 | 2 | 28.89% | 43.28 | 2.43 | 29.19% | 44.34 | 2.44 | 37.11% |
| 3600 | 0 | 41.22 | 2 | 27.59% | 43.17 | 2.44 | 28.35% | 44.31 | 2.52 | 35.68% |
| 3700 | 0 | 40.92 | 2 | 25.75% | 42.88 | 2.34 | 27.65% | 44 | 2.62 | 31.96% |
| 3800 | 0 | 40.79 | 2.17 | 23.03% | 42.51 | 2.43 | 24.45% | 43.63 | 2.52 | 30.51% |
| 3900 | 0 | 41.15 | 2.15 | 25.26% | 42.8 | 2.43 | 26.14% | 43.84 | 2.52 | 32.02% |
| 4000 | 0 | 41.58 | 2.09 | 28.68% | 43.1 | 2.41 | 28.24% | 44.11 | 2.59 | 33.16% |
| 4100 | 0 | 41.72 | 2.04 | 30.35% | 43.52 | 2.39 | 31.37% | 44.1 | 2.59 | 33.08% |
| 4200 | 0 | 41.8 | 1.88 | 33.55% | 43.22 | 2.22 | 31.52% | 44.1 | 2.57 | 33.34% |
| 4300 | 0 | 42.13 | 1.92 | 35.44% | 43.59 | 2.21 | 34.47% | 44.4 | 2.58 | 35.58% |
| 4400 | 0 | 41.87 | 1.97 | 32.53% | 43.38 | 2.2 | 33.00% | 44.26 | 2.45 | 36.28% |
| 4500 | 0 | 41.73 | 2 | 31.03% | 43.31 | 2.19 | 32.62% | 44.2 | 2.47 | 35.50% |
| 4600 | 0 | 40.96 | 2 | 25.99% | 42.77 | 2.18 | 28.93% | 43.73 | 2.48 | 31.73% |
| 4700 | 0 | 40.49 | 2.01 | 23.21% | 42.3 | 2.1 | 26.96% | 43.35 | 2.43 | 29.67% |
| 4800 | 0 | 41.18 | 1.98 | 27.61% | 42.9 | 2.14 | 30.37% | 44.1 | 2.36 | 36.31% |
| 4900 | 0 | 40.46 | 2 | 23.16% | 42.23 | 2.15 | 25.91% | 43.4 | 2.22 | 32.85% |
| 5000 | 0 | 40.91 | 2 | 25.69% | 42.6 | 2.13 | 28.48% | 43.83 | 2.25 | 35.78% |
| 5100 | 0 | 40.64 | 2.14 | 22.56% | 42.3 | 2.25 | 25.16% | 43.52 | 2.23 | 33.62% |
| 5200 | 0 | 40.78 | 2.25 | 22.16% | 42.44 | 2.42 | 24.16% | 43.63 | 2.35 | 32.72% |
| 5300 | 0 | 40.91 | 2.21 | 23.25% | 42.52 | 2.41 | 24.71% | 43.65 | 2.52 | 30.65% |
| 5400 | 0 | 40.92 | 2.32 | 22.20% | 42.57 | 2.54 | 23.72% | 43.64 | 2.52 | 30.58% |
| 5500 | 0 | 41.28 | 2.32 | 24.12% | 42.91 | 2.53 | 25.75% | 43.87 | 2.64 | 30.78% |
| 5600 | 0 | 41.31 | 2.32 | 24.28% | 43 | 2.52 | 26.39% | 44.04 | 2.62 | 32.25% |
| 5700 | 0 | 41.51 | 2.34 | 25.21% | 43.28 | 2.55 | 27.82% | 44.27 | 2.64 | 33.75% |
| 5800 | 0 | 41.62 | 2.35 | 25.75% | 43.3 | 2.57 | 27.73% | 44.26 | 2.67 | 33.29% |
| 5900 | 0 | 41.13 | 2.32 | 23.30% | 42.9 | 2.49 | 26.10% | 43.92 | 2.58 | 31.86% |
| 6000 | 0 | 41.27 | 2.33 | 23.96% | 43 | 2.5 | 26.60% | 43.03 | 2.57 | 26.06% |
| 6100 | 0 | 41.11 | 2.35 | 22.89% | 42.78 | 2.51 | 25.19% | 43.75 | 2.58 | 30.64% |
| 6200 | 0 | 40.64 | 2.28 | 21.18% | 42.23 | 2.45 | 22.74% | 43.14 | 2.49 | 27.59% |
| 6300 | 0 | 41.15 | 2.24 | 24.24% | 42.71 | 2.41 | 25.81% | 43.54 | 2.46 | 30.62% |
| 6400 | 0 | 41.06 | 2.2 | 24.17% | 42.71 | 2.38 | 26.14% | 43.33 | 2.46 | 29.17% |
| 6500 | 0 | 40.67 | 2.18 | 22.30% | 42.27 | 2.34 | 24.02% | 43.11 | 2.43 | 28.07% |
| 6600 | 0 | 40.67 | 2.2 | 22.10% | 42.29 | 2.37 | 23.83% | 43.17 | 2.49 | 27.78% |
| 6700 | 0 | 40.62 | 2.18 | 22.05% | 42.33 | 2.35 | 24.26% | 43.19 | 2.49 | 27.90% |
| 6800 | 0 | 40.95 | 2.2 | 23.57% | 42.47 | 2.37 | 24.84% | 43.36 | 2.521 | 28.66% |
| 6900 | 0 | 40.66 | 2.15 | 22.56% | 42.28 | 2.35 | 23.98% | 43.18 | 2.53 | 27.40% |
| 7000 | 0 | 41.28 | 2.12 | 26.39% | 42.91 | 2.34 | 27.84% | 43.75 | 2.51 | 31.49% |
| 7100 | 0 | 40.73 | 2.04 | 24.16% | 42.34 | 2.27 | 25.17% | 43.42 | 2.45 | 29.90% |
| 7200 | 0 | 41.15 | 1.98 | 27.42% | 42.85 | 2.52 | 25.50% | 43.92 | 2.39 | 34.39% |
| 7300 | 0 | 41 | 1.88 | 27.90% | 42.74 | 2.12 | 29.55% | 43.68 | 2.31 | 33.67% |
