| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | TeXin |
| प्रमाणन: | SGS,ISO9001 |
| मॉडल संख्या: | TX-CD100W |
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | टिकाऊ मामला या बॉक्स |
| प्रसव के समय: | 3-5 दिन |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | 50,00pcs/महीना |
| आवृत्ति: | 2000-7200 मेगाहर्ट्ज (अनुकूलित) | परीक्षण वोल्टेज: | 28-32V |
|---|---|---|---|
| मौजूदा: | 9ए | उत्पादन: | 100W |
| पाना: | 53 डीबीएम | आउटपुट स्थिरता: | 1dB |
| योजक: | एन/महिला | बाहरी खोल का आकार: | 220*110*26 मिमी |
| वज़न: | 1316 ग्राम | कार्य -तापमान: | -40~+65 |
| बाहर की छिलका सामग्री: | अल्युमीनियम | आवेदन: | ड्रोन जामर |
| प्रमुखता देना: | RF amplifier module 100W,drone jammer power amplifier,Ultra band amplifier 2000-7200MHz |
||

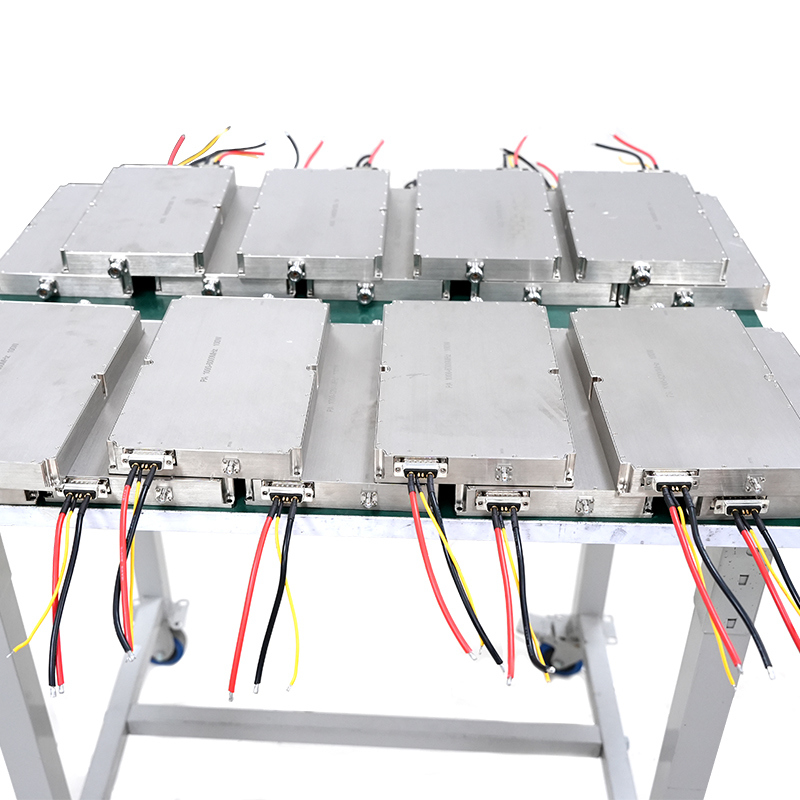

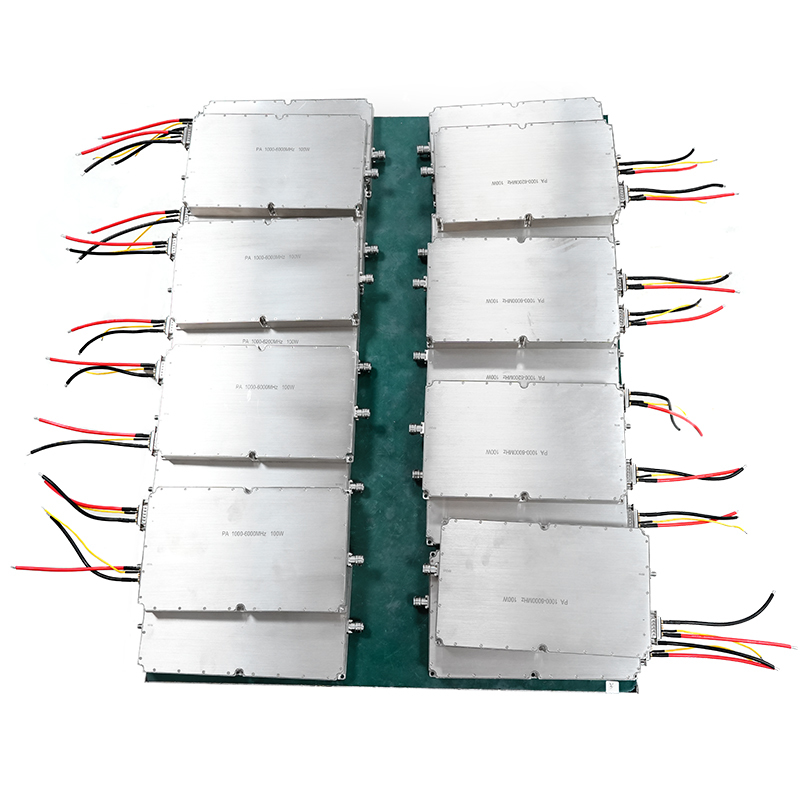

Professional Ultra band 2000-7200mhz 100W power amplifier module designed by Texin, it is ultra band range 2000-7200mhz in one module. Users can install it by themselves to interfere with drones in the range from a distance, and the band 2000-7200mhz 100W power amplifier module supports customization.
The wide band power amplifier jammer module can be applied in areas with high requirements for low-altitude safety, such as airports, military restricted areas, large-scale event venues, chemical parks, and nuclear power plants. For example, at airports, it can prevent drones from entering no-fly zones, ensuring the normal takeoff and landing of flights; at large event venues, it can prevent illegal drone filming, maintaining safety and order at events.
| Description | Symbol | Min | Typ | Max | Unit | Remark |
|---|---|---|---|---|---|---|
| Operating Frequency | BW | 2000 | 7200 | MHz | ||
| Input Power | Pin | 0 | dBm | |||
| Output Power CW | Psat | 47 | 48 | 49.5 | dBm | Continuous Wave |
| Power Gain | Gp | 48 | dBm | @ Pin=0 dBm | ||
| Power Gain Flatness | △Gp | ±1.5 | dB | @ Pin=0 dBm | ||
| Input Return Loss | S11 | -15 | dB | |||
| Operating Voltage | Vdc | 28 | 28 | 36 | V | |
| Current Consumption | A | 7 | 9 | A | @ Pout=50~85W | |

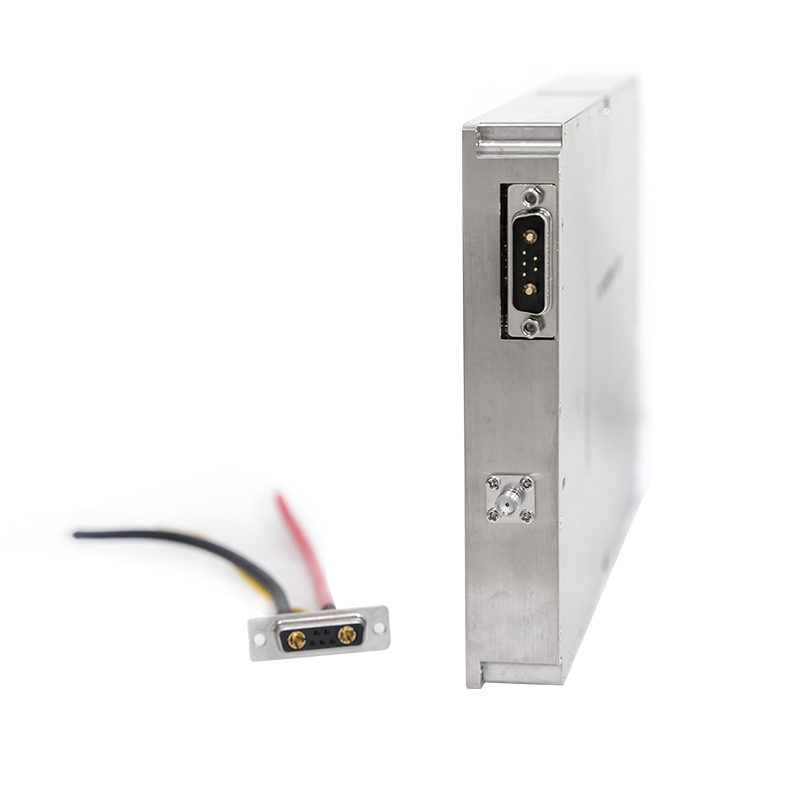

| RF Connector Input | SMA, Female | |||||
| RF Connector Output | SMA, Female | |||||
| Max Input Power | PinMax | ≤10 dBm | ||||
| Interface Definition | VDD | A1: 28Vdc | ||||
| GND | A2: Ground | |||||
| Enable | 1: 5V~Vdd:ON 0V:OFF | |||||
