| उत्पत्ति के प्लेस: | शेनझेन, चीन |
|---|---|
| ब्रांड नाम: | TeXin |
| प्रमाणन: | CE ISO |
| मॉडल संख्या: | TX007-8059-5-18D65PCB |
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | टिकाऊ मामला |
| प्रसव के समय: | 5-8 दिन |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | 1000/महीना |

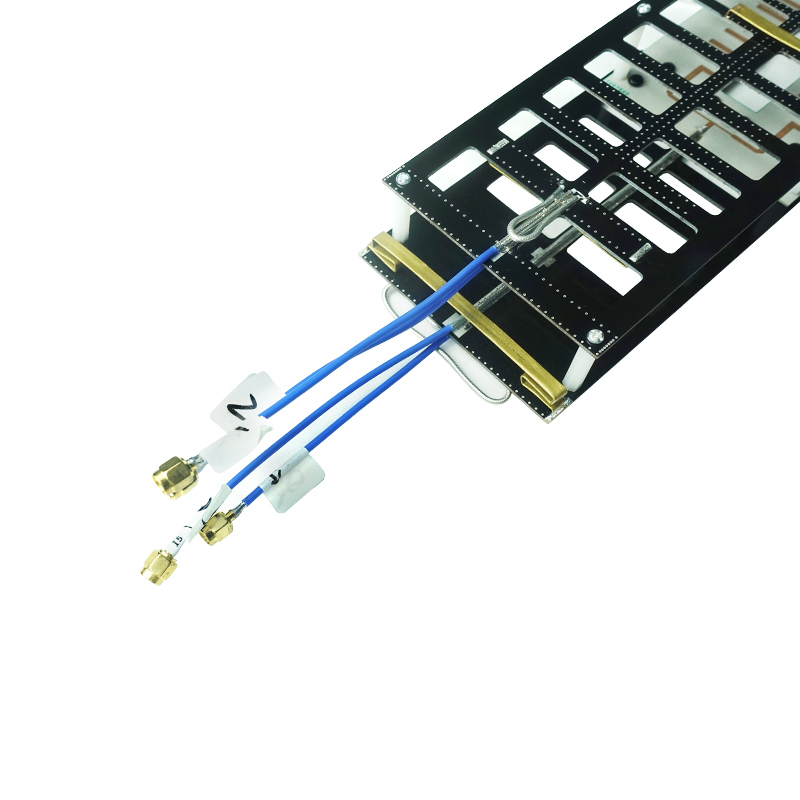

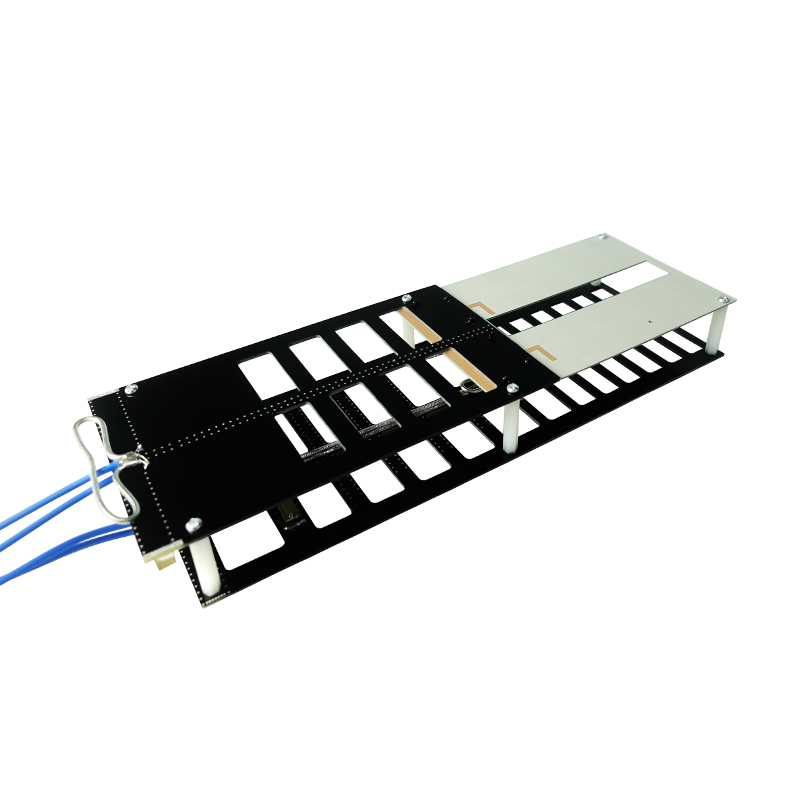

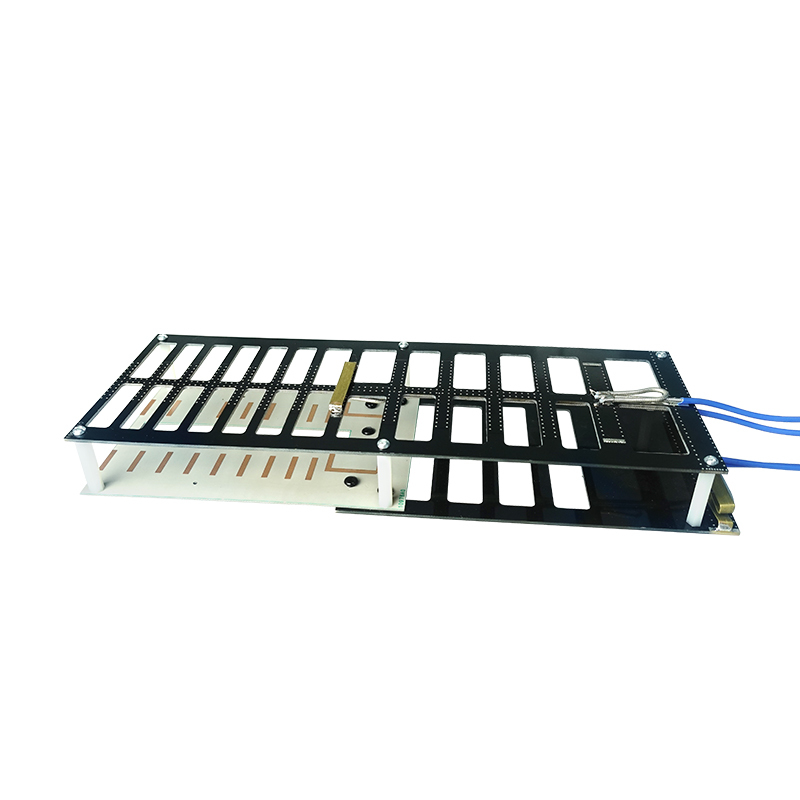

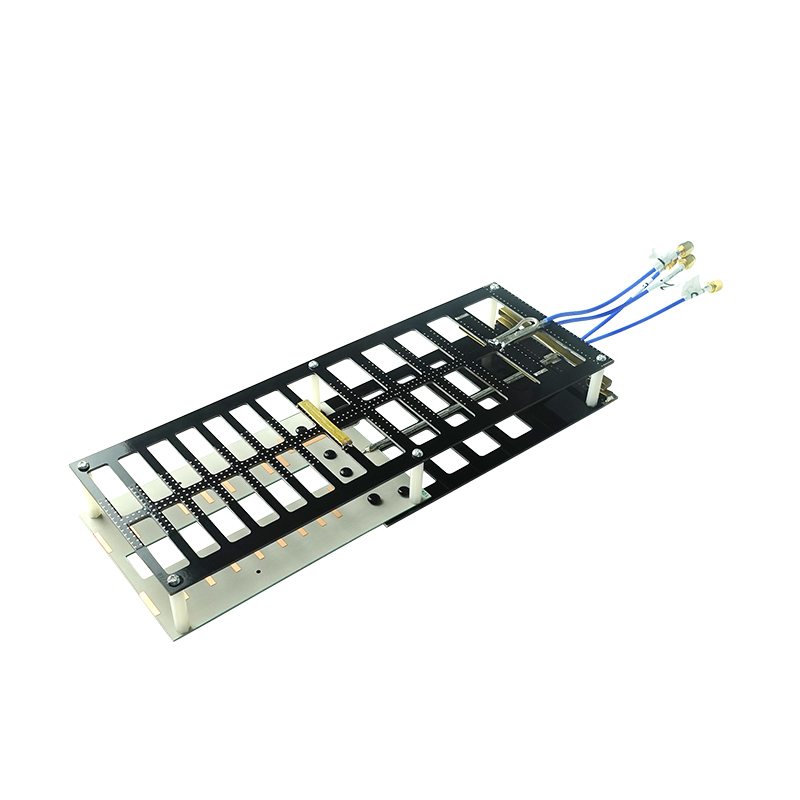

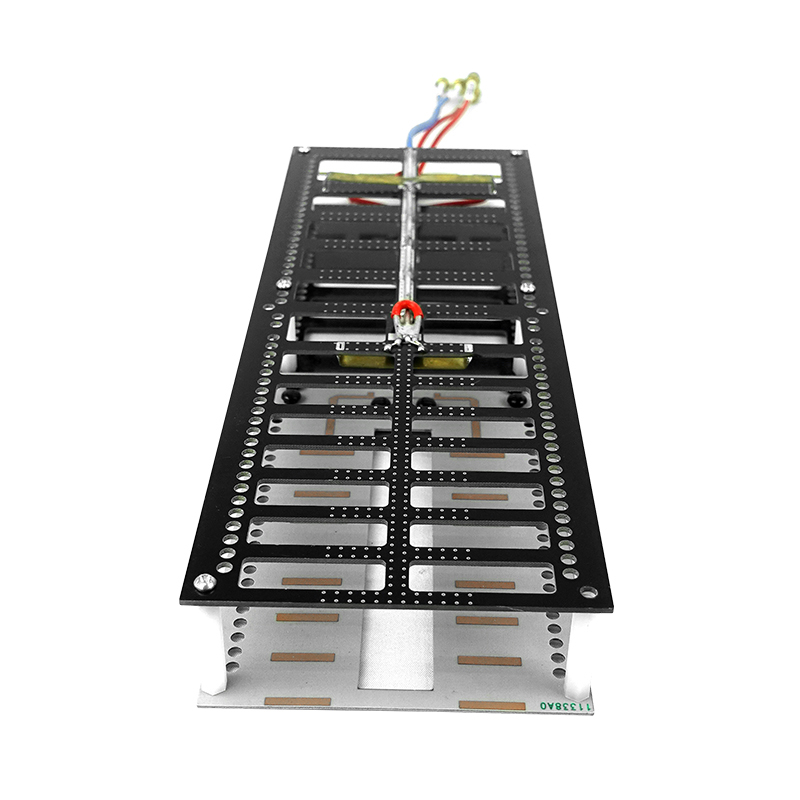

| नाम: | 4 बैंड ड्रोन जैमर पीसीबीए एंटीना | आवृत्ति रेंज: | 800MHz 900MHz 1200MHz 5200MHz 5800MHz |
|---|---|---|---|
| विशेषताएँ: | 4 बैंड | आवेदन: | विरोधी ड्रोन तंत्र |
| अधिकतम इनपुट पावर (डब्ल्यू): | 50W | इनपुट प्रतिबाधा: | 50 |
| आयाम: | 284*97.5*40 मिमी | वज़न: | 0.35 किग्रा |
| सामग्री: | पीसीबी | ||
| प्रमुखता देना: | 4 band high gain antenna,S connector 18dbi antenna,5800mhz anti drone jammer antenna |
||
Portable Full band 300-6000MHz drone jammer integrated detection FPV defense system
This portable drone jammer detection device, developed by Texin, features a waterproof, dirt-resistant, and high-temperature-resistant exterior. While working outdoors, it allows users to quickly predict and warn of potential drone threats. Activating the jammer function cuts off the transmission channel between the drone and the remote control, protecting personal safety.
| Product Type | Portable detection integrated jammer shield |
| Detecting frequency | 1GHz-1.3GHz 2.4GHz-2.5GHz 5GHz-6GHz |
| Jamming Range | 1000-1500m |
| Detect refresh time | 3S |
| Number of drone | ≥100 |
| Working way | Drive away |
| Detecting Range | 360° |
| Antenna | High gain 3dbi |
| Working Channels Customized | 410-485 MHz (433 MHz) 10W 840-920 MHz (900MHz) 40W LORA module offered 1100-1280 MHz (1.2 GHz) 10W 1300-1390 MHz (1.4 GHz) 10W 1560-1620 MHz (1.5 GHz) 20W 2400-2500 MHz (2.4 GHz) 50W 5150-5350 MHz (5.2 GHz) 30W 5725-5850 MHz (5.8 GHz) 50W |
| Total Output Power | >200W |
| Body Weight | 6.5 kg |
| Working Temperature | -40ºC to +65ºC |
| Working Humidity | 35~85% |
| Battery | lithium battery |
| Battery Lasting Time | 50-60 minute |
| Detection principle | It based on spectrum perception and artificial intelligence technology to identify and classify the flight control link and figure transmission link of drone. It can detect figure transmission type and frequency of drone. |
| Detection type | Detect DJI series drones, speedy bee and DIY figure transmission drones, covering more than 97% of models on the market. |
| Multi-frequency band detection | Detect conventional frequency band(1.2GHz,2.4GHz-2.5GHz,5.2GHz-5.9GHz) models with figure transmission and it with low false alarm rate. |
| Multi-frequency band jammer support (customize) | Without any external unit, it is highly integrated and integrated design, with the ability to attack drones that conventionally use remote control image transmission frequency bands such as 2.4GHz and 5.8GHz, and has the ability to interfere with GPS (can be expanded to other frequency bands). |
| Stronger jammer effect | In order to achieve better interference effect with the new drone Mavic3, we have carried out targeted design. By studying the technical specifications and working principles of Mavic3, we determined the targeted interference strategy. |
| Convenient | The carefully designed lightweight size makes the device very convenient to carry and operate, whether it is stored in the vehicle or carried to different workplaces, ergonomic design of the handle, to provide users with a comfortable holding experience, reduce the fatigue of operation |
| Easy operate | No additional external equipment is required, just turn on the power detection, detect the frequency of the drone click on the screen, the display is gray, press the strike button, the screen displays red "ripple" and continuous "drip" sound, indicating that the work has started, press the strike button again, the "drip" sound stops indicating that the strike stops working. |
With the expansion of business, Texin has now opened more than 10 production lines, which can support large-volume orders. We have advanced debugging equipment and a professional technical team. Our drone countermeasure equipment is sold all over the world. Excellent products and high-quality services have won unlimited praise from customers. If you have any ideas, please feel free to consult. Shenzhen Texin Electronics Co., Ltd. looks forward to cooperating with you!
Prisons, government, Oil and Gas Storage Facilities and fields, Churches, Theaters, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.
